Binaural Field Recording Rig

This complete binaural rig was created out of necessity. I needed a pair of electrets that could handle being out in the wild. My LOM mikroUši mics sounded great, but died within a few months because the cables were just too thin. Plus, most professional field recording gear is expensive and more affordable alternatives do not exist. Until now! Built to order.

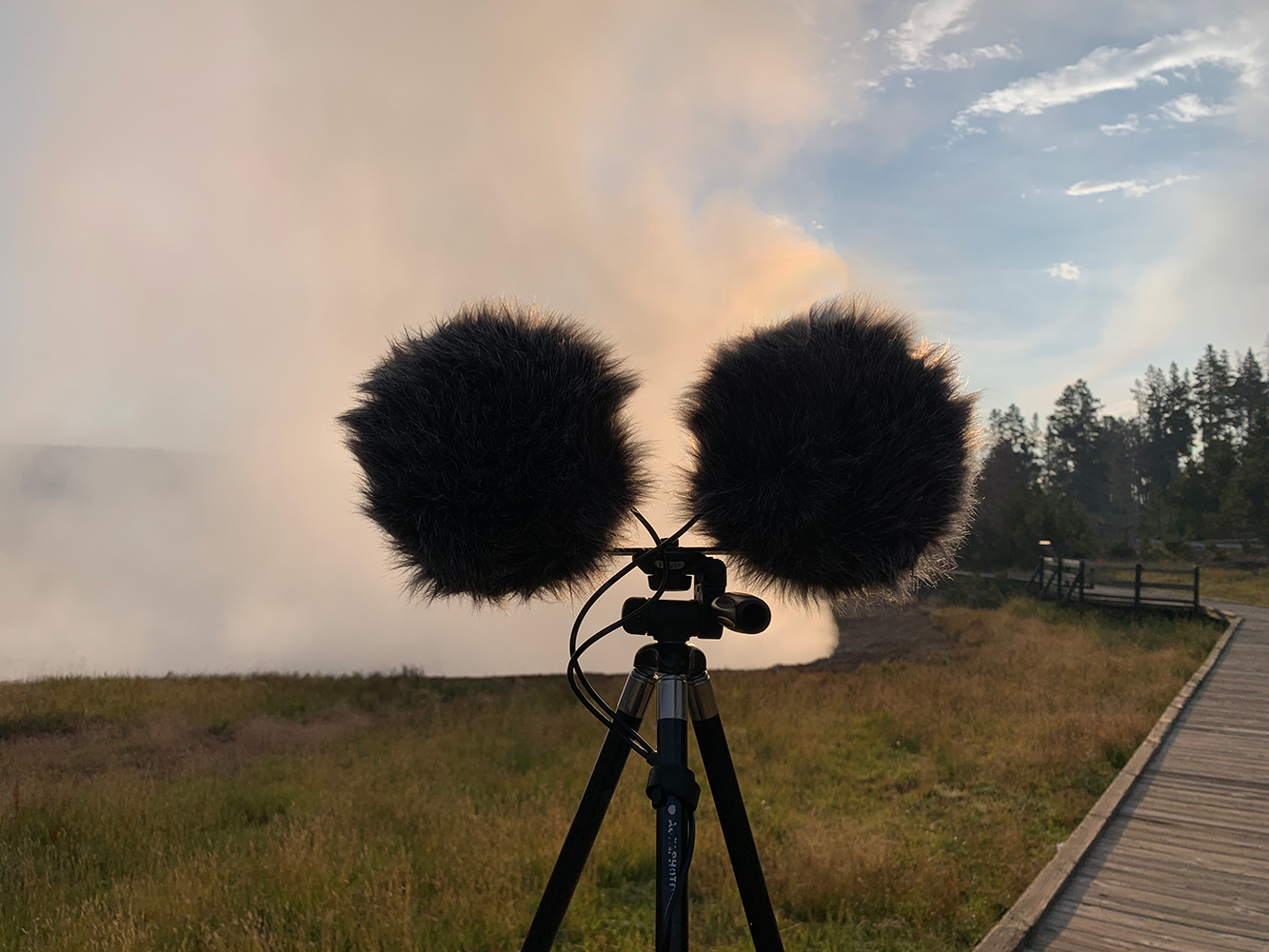

Below is a sample recording using the “furry” binaural rig at Yellowstone National Park during a morning bison migration .

The binaural rig includes:

Stereo-matched pair of electret microphones (see specs below)
Preamp (see specs below)
Pair of nylon windscreens
Pair of faux fur “baby ball gag” windjammers
Pair of 3D-printed spherical windshields
Pair of official mini Rycote lyre shock mounts
Aluminum T-bar (with tripod mounting)
Binaural ear rig (3D-printed)

*recording device not included

Preamp Specs:

  • Power: 9V battery
  • 3.5mm (1/8") stereo mini input
  • 3.5mm (1/8") stereo mini output
  • Features LM386 amplifier chips
  • Stereo “out” jack functions as on/off switch (when the output cable is unplugged the preamp powers off)
  • Mic Gain: 30dB
  • Dimensions: 1" x 2.5" x 3.5"

Stereo Matched Electret Microphone Specs:
  • Ultra low noise - High Sensitivity
  • Primo EM272 Microphone Capsules
  • Wide Dynamic range
  • Signal to Noise ratio 80dB (Self Noise 14dBA)
  • Sensitivity -28 dB (±3dB at 1kHz, 0dB=1V/Pa)
  • Maximum input Sound Pressure Level 119 dB

Frequency Response:

$500 USD with free domestic shipping

Add to Cart ︎

Also available on Reverb here
